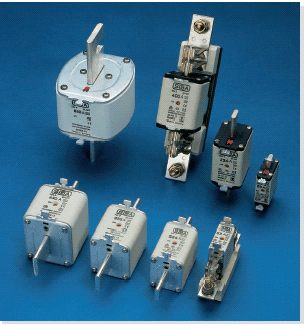

SIBA NH Fuse-links with top and center indicatorare
available in a large variety of voltage ratings,
body sizes and operating classes:
Sizes: 000, 00, 0, 1, 2, 3 and 4
Voltage ratings: AC 400 / 500 / 690 /1000 / 1500
V
Operation class:
| |
gG: General PurposeCable
and Line protection
gB:
For general application
aM:
Motor circuit short circuit protection
gTr: General Purpose
Transformer Protection
gTF:
For general application |
Standards:
| |
IEC 60269-1-2 / EN 60269-1-2
DIN VDE 0636 part 201
DIN VDE 0636 part 2011
DIN 43620 |
Approvals: Germany, Austria, Switzerland
Features / Benefits
·Combination indicator (top and center)
for easy identification of blown fuses
·High interrupting rating up to 120 kA
· Voltage ratings AC 400 - 1500 V
· Operation classes gG / gB / aM / gTr /
gTF available for all applications
· Fuse bases and accessories available,
made of sheet steel base plate with ceramic
support
· Low power losses and temperatures
·All fuse links are entirely corrosionresistant
·Removal tags: Standard design in metal,
insulated removal tags available for increased
safety |
|
|
|
|
